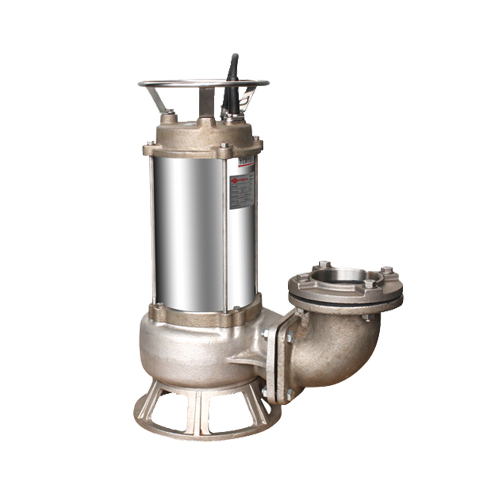

Stainless Steel Submersible Sewage Pump (EFS-series)
Stainless Steel Submersible Sewage Pump (EFS-series)
- Non-clogging impeller minimizes abrasives wear and allows large solid passage.
- Dry motor with overload protector; Cable with an epoxy resin sealed water-proof cable hood; Use deep groove C3 bearing to extend life time.
- Superior abrasion resistant double mechanical seal made of silicon carbide (SIC) to ensure best seal effect and reduce abrasion from sewage.
- SUS316 main sub. pump components minimize abrasion from sewage and wastewater.
- Waste water drainage from all industries.
- Sewage drainage from hotels, restaurants, schools, malls, and public buildings.
- Fishery, animal husbandry, stock farm, piggery, and fecal sewage tank in water treatment plant.
- Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.
- PH3~11 industrial or domestic wastewater.
- Water temperature: 0~40℃
- Ambient temperature: 0~40℃
- Solid passage: 35~50MM
- Operating water depth: Max.8~10M
- No 24hrs continuously running.
- No use in (100%)pure sea water
2P dry type or oil type motor.
Insulation: F class
Protection: IP68
Frequency: 50HZ
Voltage: 1 phase 220~240V (0.5~2HP), 3 phase 220~440V (all models)
