Industrial Water Treatment

Swe Zin May provides the best proven technologies in industrial water treatment system. Media filtration, Ultra Filtration, Nano filtration and Reverse Osmosis systems are available.

RT35T

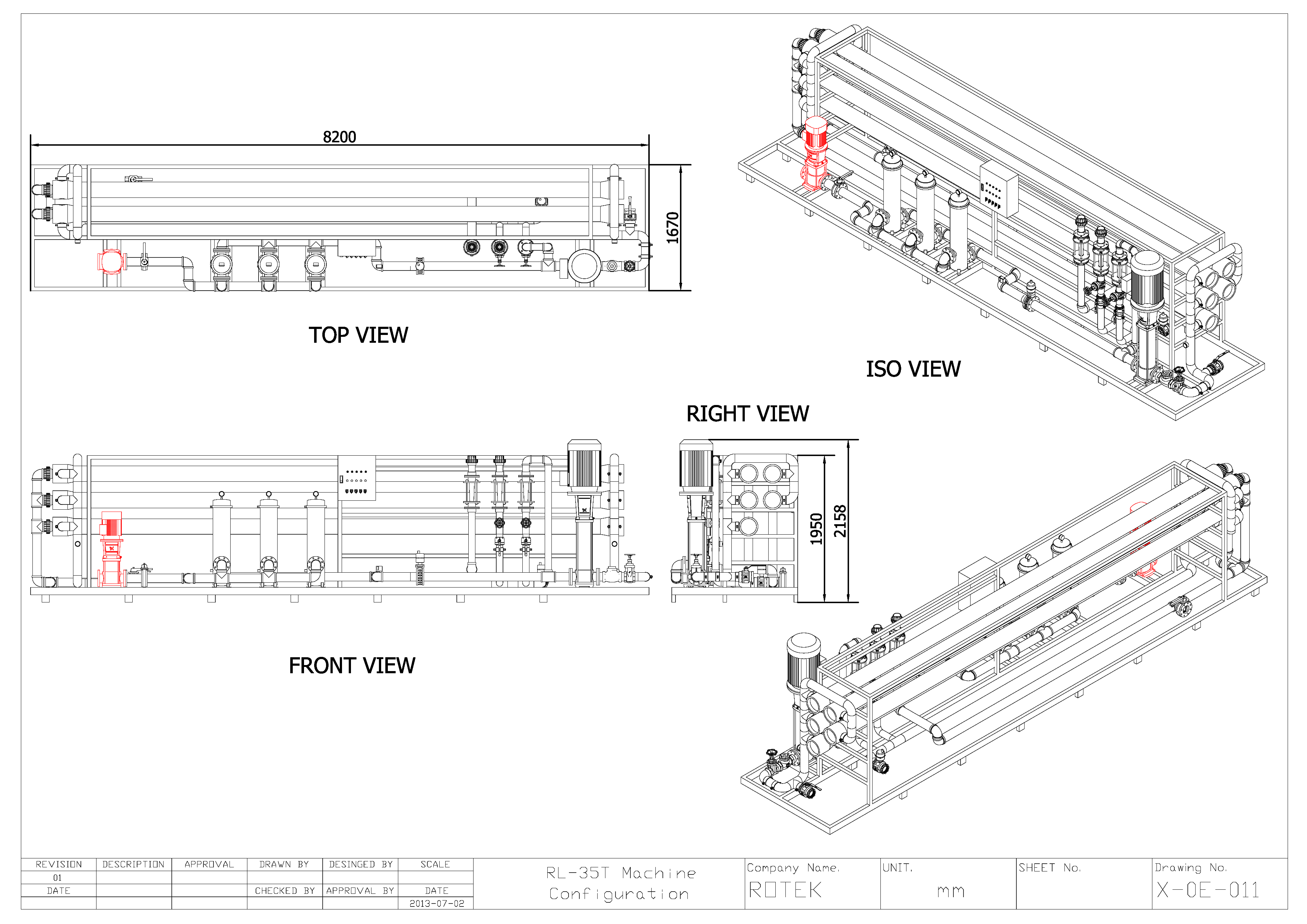

Model Number: RL35T

RL series RO systems are skid mounted with stainless steel frame, pre plumbed and pre wired allowing for quick installation and start up. Models are available with permeate outputs of between 3,000 and 50,000 litres/hr as shown in the specifications.

Benefits

  • PLC Control with Mimic Panel
  • Fully Equipped and Customizable
  • Factory Tested and Preserved
  • 1-Year Limited Warranty
  • Manufactured in Taiwan

Standard Features:

  • PLC control + mimic panel
  • Conductivity meter for permeate water
  • 300PSI FRP membrane housing
  • Grundfos multistage booster pump
  • 5 micron sediment pre-filter
  • Rotek rotameters for permeate and concentrate stream
  • Rotek pressure gauges for prefilter feed and RO feed
  • Danfoss low pressure switch
  • SS316 concentrate needle valve
  • Concentrate recycling with flow meter
  • Electro-plated SS304 skid frame
  • Provision for CIP and chemical dosing
  • Stainless steel pipeworks on high pressure side
  • UPVC SCH80 pipeworks on low pressure side
