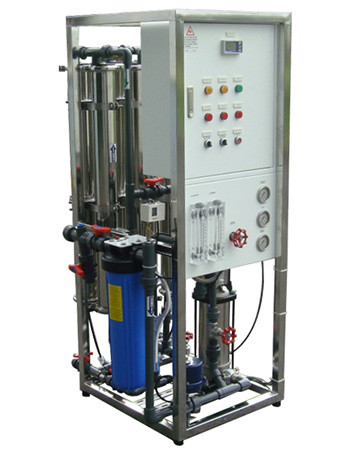

RA9000
Model Number: RA9000
RA series systems are part of a family of reverse osmosis units designed for operation with fresh and brackish feedwaters having TDS values below 1,500ppm. Models are available with permeate outputs of between 150 and 1,000 litres/hr as shown in the specifications.
Benefits
- Specialized Micro-Computer Controller
- Fully Equipped and Customizable
- Factory Tested and Preserved
- 1-Year Limited Warranty
- Manufactured in Taiwan
Standard Features
-
RO micro-computer controller with permeate TDS readout
-
300PSI stainless steel membrane housing+PE end caps
-
NUERT rotary vane pump for 800-1500GPD
EVERGUSH multistage pump for 3000-6000GPD -
5 micron sediment pre-filter x 2 in series
-
Rotek rotameters for permeate and concentrate stream
-
Rotek pressure gauges for prefilter feed and RO feed
-
Danfoss low pressure switch
-
SS316 concentrate needle valve
-
Concentrate recycling valve (without flow meter)
-
Electro-plated SS304 skid frame
Specifications
| Models | RA 800 | RA 1500 | RA 3000 | RA 4500 | RA 6000 |
|---|---|---|---|---|---|
| Feed Water TDS | <1500ppm | <1500ppm | <1500ppm | <1500ppm | <1500ppm |
| Recovery Rate* | 18-75% | 18-75% | 34-75% | 45-75% | 50-75% |
| Vessel Array | 1 | 1 | 1:1 | 1:1:1 | 1:1:1:1 |
| Vessel Size | 2540 x 1 | 4040 x 1 | 4040 x 2 | 4040 x 3 | 4040 x 4 |
| Permeate Flow Rate (gpm/lpm)** | 0.6/2.2 | 1.0/3.9 | 2.1/7.9 | 3.1/11.8 | 4.2/15.8 |
| Feed Connection | 3/8″ FNPT | 1/2″ FNPT | 3/4″ FNPT | 3/4″ FNPT | 3/4″ FNPT |
| Permeate Connection | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 |
| Concentrate Connection | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 |
| Flush Connection | 3/8 | 3/8 | 1/2 | 1/2 | 1/2 |
| Pump type & Motor HP | Rotary Vane 0.5HP | Rotary Vane 1HP | Multistage 2HP | Multistage 2HP | Multistage 2HP |
| Gross Dimension (mm) | 330X420X1275 | 330X420X1275 | 330X600X1275 | 330X600X1275 | 330X600X1275 |
| Gross Weight (kg) | 40 |
