Inverter Booster Pump Systems (UP, UB – Series)
Inverter Booster Pump Systems (UP, UB – Series)
Model Code: UP80-50CP-23.7
- Provide constant water pressure while using water.
- No water hammer, improve on/off frequency.
- Low noise and smooth operation. The system will adjust motor speed automatically, according to demand of capacity. The system can save energy resources and uplift performance.
- Customized design. We can choose types water pumps, quantities of inverter, volume of pressure tanks and operation approach upon customer’s request.
- Dry-running detection. Inverter pump will turn off automatically in 15 seconds once water outage occurs, to protect motor from burnout. Inverter will auto detect water status and restart pump in 20 minutes until normal water returns.
- No need water storage tank, to reduce the cost of maintenance.

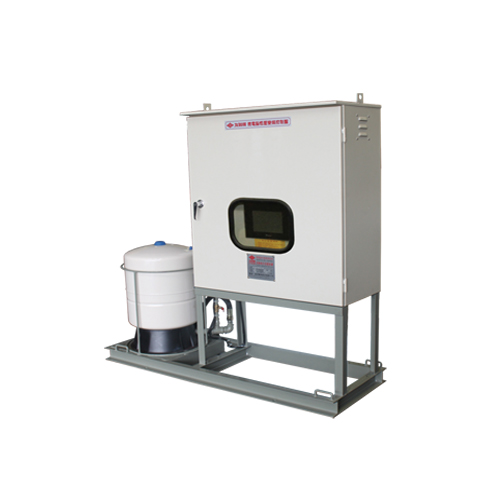

- Human machine interface is optional upon request. “HMI” on control panel is designed for easy and friendly control by users.
- Water supply for IC manufacture industries, industrial pressure boosting systems, motels, restaurants, gas stations, apartments, factories, school, parks, gymnasiums, villas, railway station, building sites, etc.
This equipment can calculate and export analog continuous signal to inverter according to system pressure variation, sense the difference between the signal and microcomputer constant pressure controller setting. The inverter will change frequency again by the variation of 4-20MA. The pump motor speed changed according to the variation of frequency to achieve the major function of constant pressure and other function such as shut down during no incoming water, no water hammer, softly start up/stop etc.
