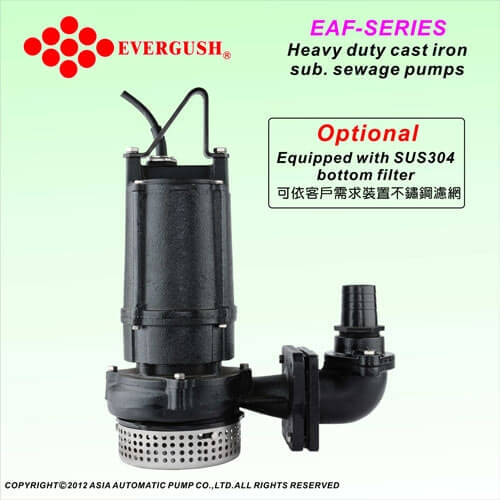

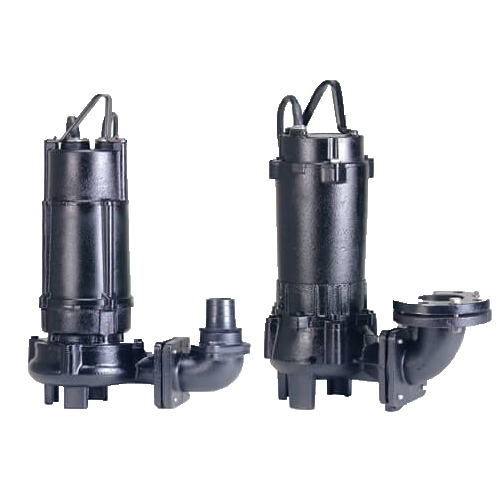

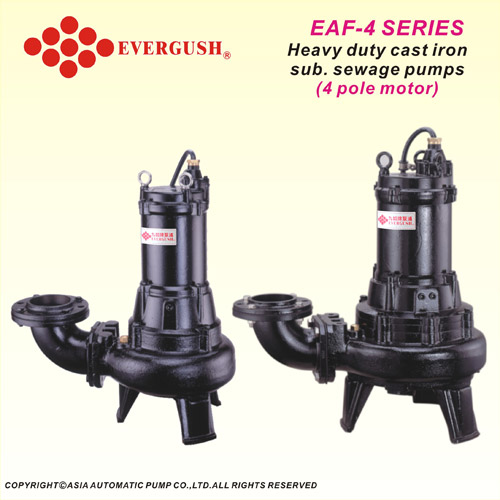

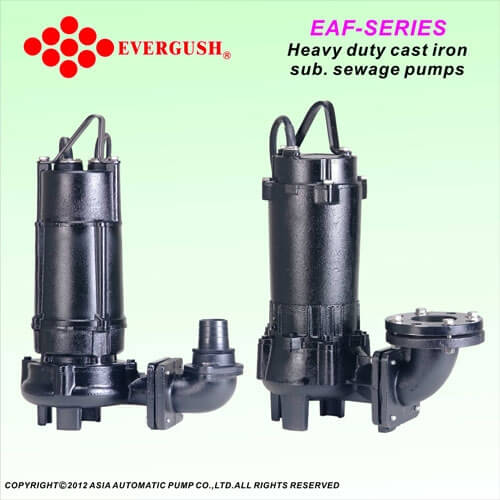

Heavy duty Submersible Sewage Pump (EAF-series)
Heavy duty Submersible Sewage Pump (EAF-series)
- Non-clogging impeller minimizes abrasives wear and allows large solid passage.
- Dry motor with overload protector, cable with an epoxy resin sealed water-proof cable hood, high grade cast iron pump casing and motor housing, deep groove C3 bearing to extend life time.
- Superior abrasion resistant double mechanical seal made of silicon carbide to ensure best seal effect.

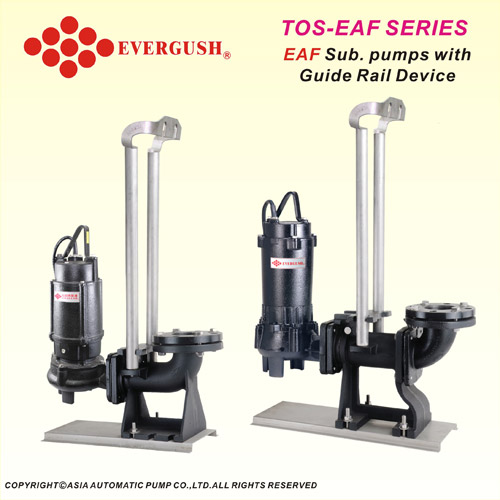

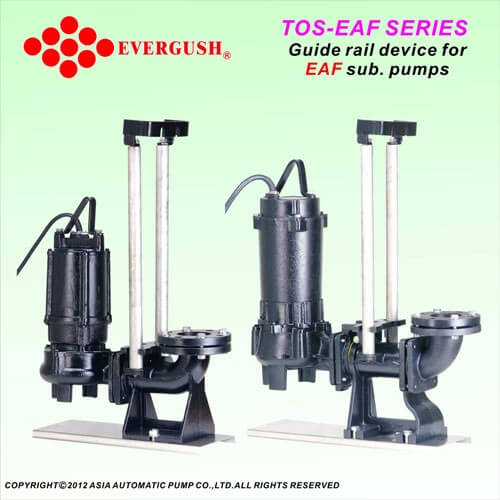

- Guide Rail Device is available for safety purpose.
- Oil seal mounted outside of seal chamber stops solids gathering around seal faces.
- Waste water drainage from all industries.
- Sewage drainage from hotels, restaurants, schools, malls, and public buildings…etc.
- Fishery, animal husbandry, stock farm, piggery, and fecal sewage tank in water treatment plant.
- Drainage of waste water containing fibrous additives from leather factories, dyeing factories and food processing plants.
- Water temperature: 0~40℃
- Ambient temperature: 0~40℃
- Solid passage: 35~50MM
- Operating water depth: Max.10M.
- No 24hrs continuously running.
- No use in (100%) pure sea water.
- 2P dry type motor.
- Insulation: F class.
- Protection: IP68.
- Frequency 50HZ.
- Voltage: 1 phase 220~240V (only 2HP), 3 phase 220~440V (all models).
