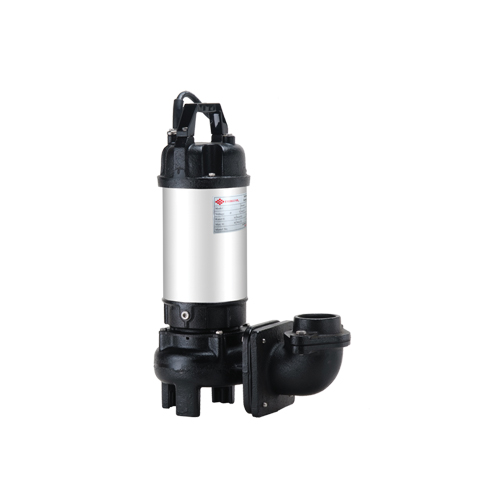

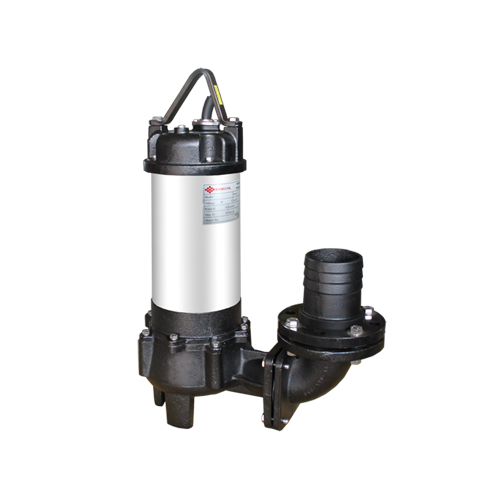

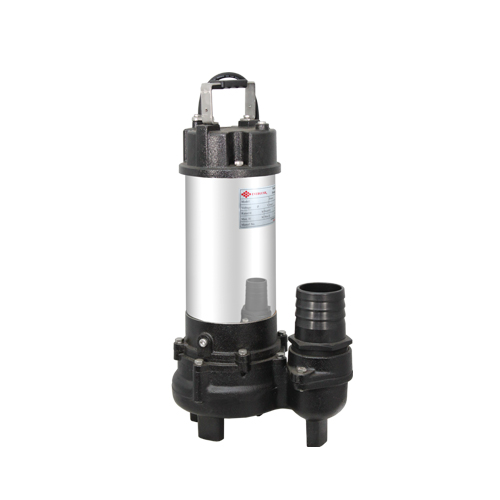

EF-series Submersible Sewage Pump
- Non-clogging impeller minimizes abrasives wear and allows large solid passage.
- Dry motor with overload protector; Cable with an epoxy resin sealed water-proof cable hood; Use deep groove C3 bearing to extend life time.
- Superior abrasion resistant double mechanical seal to ensure best seal effect.
- Oil seal mounted outside of seal chamber stops solids gathering around seal faces.
- Waste water drainage from all industries.
- Sewage drainage from hotels, restaurants, schools, malls, and public facilities.
- Fishery, animal husbandry, stock farm, piggery, fecal sewage tank in waste water treatment plant.
- Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.
Water temperature: 0~+40℃
Ambient temperature: 0~+40℃
Solid passage: 35~50MM
Operating water depth: 8~10M
No use in sea water.
No 24hrs continuously running.
2P dry or oil type motor
Insulation: F class
Protection? IP68
Frequency: 50HZ
Voltage: Single phase 220~240V (0.5~2HP)
Three Phase 220~660V (all models)
