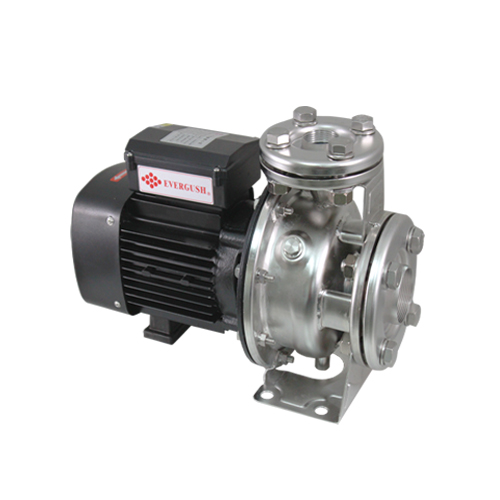

ECA-Series Stainless Steel Close-coupled Centrifugal Pump
ECA-Series Stainless Steel Close-coupled Centrifugal Pump
- Main pump construction and inside components adopt stainless steel materials. It will not create rusting problem. It also has better wear resistant.
- It is vortex design which has better efficiency.
- Back pull-out design which is easy to dismantle. It allows the pump bearing frame and impeller to be backed out of the volute without disturbing the pump piping connections.
- Special volute design for low noise operation and great performance.
- It is close coupled design. The pump and motor are using the same shaft. This will cancel out the fluctuations which will save energy and resource.
- Civil, agriculture and industrial water supply systems.
- Winery and food systems.
- Heating equipments and air conditioning systems.
- Temporary water supply for construction sites.
- Cooling tower circulation systems.
- Cleaning systems.
- Swimming pool circulation systems.
- Sprinkler systems and agriculture irrigation.
- Ambient temperature: +0~+50℃
- Liquid temperature: +0~+70℃
- Max. head: 70M
- Max. capacity: 70 m3/hr
- Do not use it for sea water or highly corrosive liquids.
- Max. working pressure: 10 bar.
- 2 pole induction motors.
- Insulation class: F
- Protection class: IPX5
- Voltages: 1 phase 220V (Below 3HP), 3 Phase 220V~415V (50HZ)
