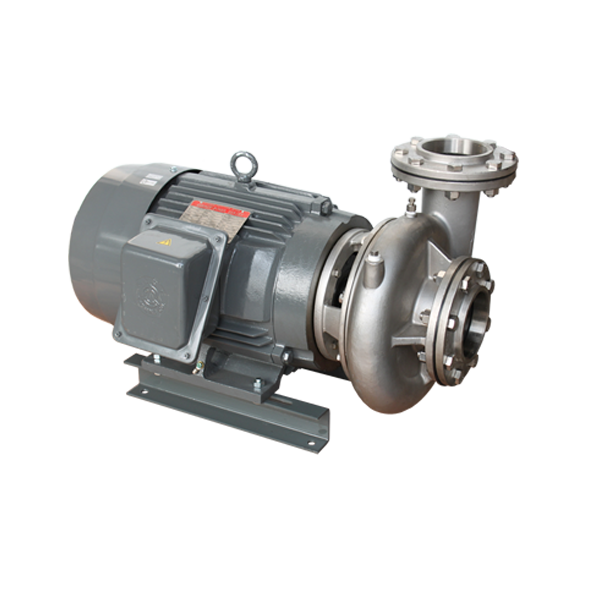

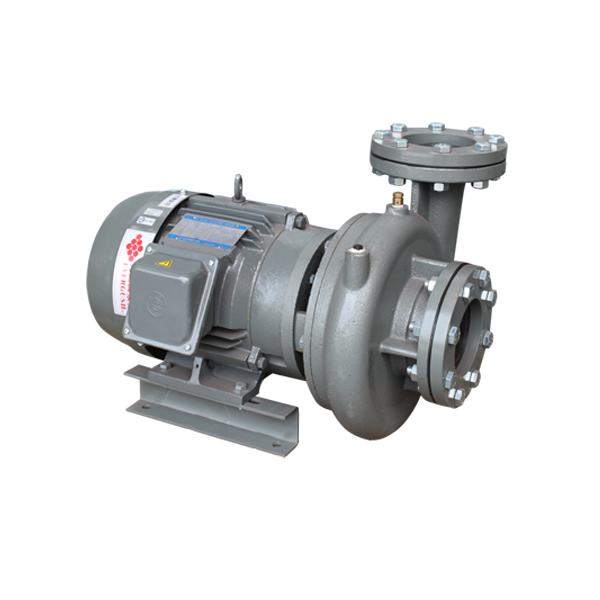

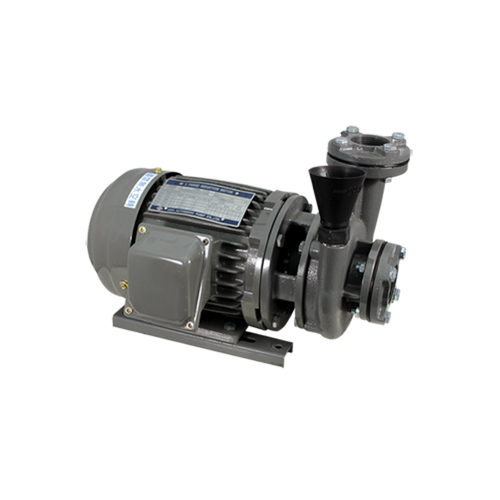

CP-Series Close-coupled Centrifugal Pumps
CP-Series Close-coupled Centrifugal Pumps
1. The motor and pump are connected with the same shaft, for eliminating fluctuation and reducing installation and maintenance cost.
2. Special volute channel design for silent operation and high efficiency.
3. Compact & robust structure for saving space and easy installation.
1. Heating and cooling water circulation.
2. Broad range of industrial applications.
3. Open loop and close loop water circuit systems.
4. Water supply and pressure boosting systems.
5. Process water for paper mill, brewery, refinery.
6. Boiler feed, washing and cleaning system.
7. Water supply and disposal for households.
8. Water circulation for cooling tower, air-condition facilities.
- Ambient temperature: 0~+50℃
- Liquid temperature: 0~+60℃
- For clean water without solid abrasives. No flammable or corrosive liquids.
- Working pressure: Max. 10 bar.
1. Voltage: Single phase 220~240V (0.5~2HP)
Three Phase 220~440V
2. Frequency: 50HZ
3. Enclosed class: IP54
4. Insulation: E, B, F
5. Enclosed Fan cooled, 2 or 4 pole motor
