Water Pump

Swe Zin May is a sole distributor of EVERGUSH pump from Taiwan. We also provide design, installation and after sales services for all our pumps.

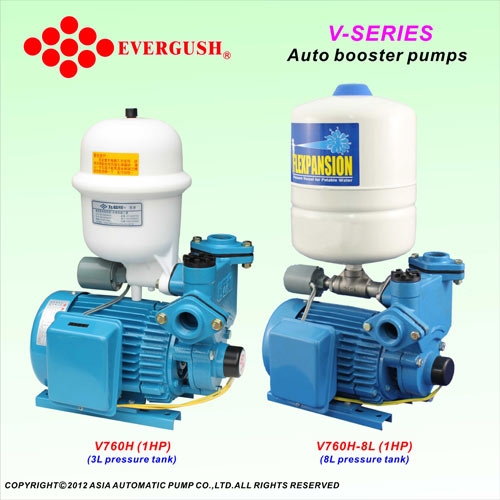

Auto Booster – V series

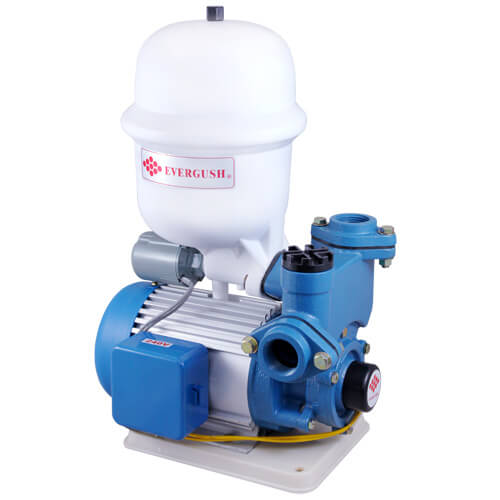

Model Number: V460AH, V760AH

1. Auto boost water pressure when water is consumed; Stop running automatically
when water is not consumed.
2. Pre-pressure one-piece forming diaphragm pressure tank with good appearance and  corrosive resistant.
3. Install overload protector in motor’s circuit and thermal shutoff device on pump front  cover to protect motor from burnout due to abnormal conditions.

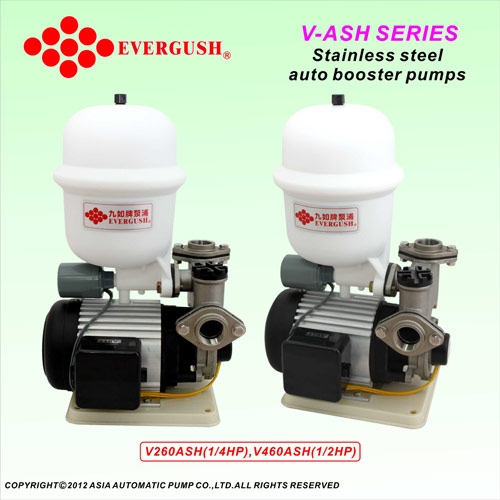

4. May select stainless steel pump casing model(V260AS,V460AS) to avoid being jammed shaft during long term idle.

1. Water supply and pressure boosting in residential and commercial applications.
2. Water pressure boosting for barber shop, restaurant,sprinkler systems, washing machine, residence, villa



1. Ambient temperature: Max. 40℃
2. Liquid temperature: Max.60℃
3. Suction Head: Max. 8M
4. Before using the pump, be sure the inlet pressure setting is lower than on setting of pressure switch.
5. For clean liquids, without impurity or chemical matters.

1. Power: 1/4 HP~1HP (0.18KW~0.75KW)
2. Motor: IP54 / Insulation B
Only single phase  1Phase 110V/220V (60Hz)
1Phase 220V~240V (50Hz)
Built in thermal overload protector
3. Max. Head:  45M
4. Max. Capacity: 70LPM
